15 September 2011

Dollar Key Tag Project - Part 3 - Refinement (Development)

Dollar Key-Tag Refinement (Development)

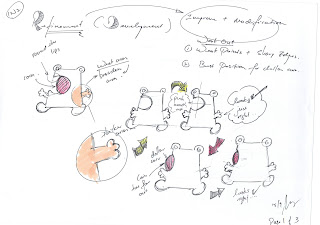

The example below is taken from my demonstration in class 1N1
Note 1: Here is a summary of some factors that should be considered when you refine your concept.

Before you could refine a concept, you should first select one out of the many you are drawn in the Idea Generation stage. Hopefully as you generate ideas in the earlier stage, you would have been modifying, combining, morphing and improving the concepts along the way.
Note 2: It is good to keep your focus and refine (develop) your concept on factor at a time. You should also remember to refer to your Design Specifications where you list out the specifics what they product must do. The above example shows you a demonstration on working on weak areas, sharp edges or corners, and finding the best position for the coin. Keep on drawing fresh new ideas as you work along the first two factors. You will find your concept evolving.
Note 3: The next few focus refinement points are improving the overall shape and proportions, followed by exploring the best position for the key ring. Try different shapes and size configurations until they look right. Your first concept may look right in the beginning. But it is still good if you would have a go at exploring some minor variations. The outcome may surprise you! I changed the sizes and positions of the eyes. And it ended up one big and small eyes do look better than both equal size. That also helped me make a major decision that one of the claws would hold a coin and the other the keyring.


Finally, nothing beats being able to simplify the concept. Find any features (e.g. shapes or method of construction) that looked complicated. Look out for the potential to simplify the project so that it still looks more desirable, easier to manage and make, and takes lesser time.
Note 4: Always remember to go back to your Design Specifications. I have a restriction on material size. So remember to draw your latest development back into the actual working size to gauge how it might actually look like. Alternatively you may want to cut out a paper model for evaluation. Make any necessary fine-tuning after that. Both on the model and in your design journal. Notice I have also reduced the body size. It is now slimmer than before. I'll continue to develop (refine) it as long a time allows me to do so before I see you all again for the next lesson.
------------------------------------------------------------------------------------------------------------

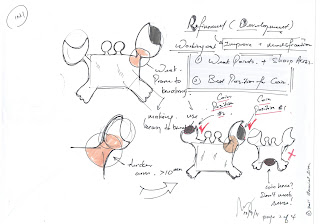

The examples below are demonstrations in class 1N2
The steps and descriptions would be similar to the ones above.



Refinements on weak points, rounding off potential sharp edges and looking out for the best coin position.
Refinement on the overall shape and proportions and the position of the key ring. Simplifying the profile of the concept if possible but without compromising the functionality and aesthetics desirability.
Finally, the refined concept is drawn to scale within the perimeters of the actual work piece. Here further refinement may be required to ensure that everything is in place. Make sure the coin can move freely in and out of its entry point.

The Grid Method is used to transfer the scaled concept on the acrylic work piece later.
